SPECIFICATIONS

OUTSIDE DIMENSIONS (INCHES):

Length: 31.9"

Width: 29.8"

Height: 25"

INSIDE DIMENSIONS (INCHES):

Length: 29.4"

Width: 27.3"

Height: 19.25"

CONTAINER CAPACITY:

2,000 lbs

Fill Line Height:  18.5"

Collapsed Height: 14.25"

Weight (lbs): 77

Return Ratio: 2:3:1

Door Height: 10.5"

Door Width: 17.3"

Fork Opening (Long Side): 3.38" x 10.25"

Fork Opening (Short Side): 2.25" x 7.3"

53' Trailer Capacity (Collapse): 420

53' Trailer Capacity (Assembled): 240

Maximum Loaded STACK STATIC: 6 (SIX) HIGH

Maximum Loaded STACK DYNAMIC: 4 (FOUR) HIGH

*All  dimensions are approximate. Dimensions and performance characteristics  are often affected by substantial temperature variations and various  handling methods.*

SPECIFICATIONS

OUTSIDE DIMENSIONS (INCHES):

Length: 31.9"

Width: 29.8"

Height: 34"

INSIDE DIMENSIONS (INCHES):

Length: 29.4"

Width: 27.3"

Height: 28.5"

CONTAINER CAPACITY:

2,000 lbs

Fill Line Height: 27.5"

Collapsed Height: 14.25"

Weight (lbs): 82

Return Ratio: 2:3:1

Door Height: 10.5"

Door Width: 17.3"

Fork Opening (Long Side): 3.38" x 10.25"

Fork Opening (Short Side): 2.25" x 7.3"

53' Trailer Capacity (Collapse): 420

53' Trailer Capacity (Assembled): 180

Maximum Loaded STACK STATIC: 6 (SIX) HIGH

Maximum Loaded STACK DYNAMIC: 3 (THREE) HIGH

*All  dimensions are approximate. Dimensions and performance characteristics  are often affected by substantial temperature variations and various  handling methods.*

SPECIFICATIONS

OUTSIDE DIMENSIONS (INCHES):

Length: 47.9"

Width: 44.9"

Height: 25"

INSIDE DIMENSIONS (INCHES):

Length: 44.3"

Width: 41.5"

Height: 19"

CONTAINER CAPACITY:

2,000 lbs

Fill Line Height: 18.6"

Collapsed Height: 12.7"

Weight (lbs): 120

Return Ratio: 2:3:1

Door Height: 11.3"

Door Width: 28.9"

Fork Opening (Long Side): 3.5" x 11.25"

Fork Opening (Short Side):  3.5" x 10.3"

53' Trailer Capacity (Collapse): 252

53' Trailer Capacity (Assembled): 112

Maximum Loaded STACK STATIC: 6 (SIX) HIGH

Maximum Loaded STACK DYNAMIC: 4 (FOUR) HIGH

*All  dimensions are approximate. Dimensions and performance characteristics  are often affected by substantial temperature variations and various  handling methods.*

SPECIFICATIONS

OUTSIDE DIMENSIONS (INCHES):

Length: 47.9"

Width: 44.9"

Height: 34"

INSIDE DIMENSIONS (INCHES):

Length: 44.3"

Width: 41.5"

Height: 28.5"

CONTAINER CAPACITY:

2,000 lbs

Fill Line Height: 27.5"

Collapsed Height: 12.7"

Weight (lbs): 144

Return Ratio: 3:1

Door Height: 15"

Door Width: 28.9"

Fork Opening (Long Side): 3.5" x 11.25"

Fork Opening (Short Side): 3.5" x 10.3"

53' Trailer Capacity (Collapse): 252

53' Trailer Capacity (Assembled): 84

Maximum Loaded STACK STATIC: 6 (SIX) HIGH

Maximum Loaded STACK DYNAMIC: 3 (THREE) HIGH

*All  dimensions are approximate. Dimensions and performance characteristics  are often affected by substantial temperature variations and various  handling methods.*

SPECIFICATIONS

OUTSIDE DIMENSIONS (INCHES):

Length: 47.9"

Width: 44.9"

Height: 42"

INSIDE DIMENSIONS (INCHES):

Length: 44.3"

Width: 41.5"

Height: 35.7"

CONTAINER CAPACITY:

1,500 lbs

Fill Line Height: 35.6"

Collapsed Height: 20.7"

Weight (lbs): 164

Return Ratio: 2:5:1

Door Height: 15"

Door Width: 28.9"

Fork Opening (Long Side): 3.5" x 11.25"

Fork Opening (Short Side): 3.5" x 10.3"

53' Trailer Capacity (Collapse): 140

53' Trailer Capacity (Assembled): 56

Maximum Loaded STACK STATIC: 4 (FOUR) HIGH

Maximum Loaded STACK DYNAMIC: 2 (TWO) HIGH

*All  dimensions are approximate. Dimensions and performance characteristics  are often affected by substantial temperature variations and various  handling methods.*

SPECIFICATIONS

OUTSIDE DIMENSIONS (INCHES):

Length: 47.9"

Width: 44.9"

Height: 50"

INSIDE DIMENSIONS (INCHES):

Length: 44.3"

Width: 41.5"

Height: 44.3"

CONTAINER CAPACITY:

1,500 lbs

Fill Line Height: 44.2"

Collapsed Height: 28.7"

Weight (lbs): 180

Return Ratio: 1.5:1

Door Height: 15"

Door Width: 28.9"

Fork Opening (Long Side): 3.5" x 11.25"

Fork Opening (Short Side): 3.5" x 11.25"

53' Trailer Capacity (Collapse): 84

53' Trailer Capacity (Assembled): 56

Maximum Loaded STACK STATIC: 4 (FOUR) HIGH

Maximum Loaded STACK DYNAMIC: 2 (TWO) HIGH

*All  dimensions are approximate. Dimensions and performance characteristics  are often affected by substantial temperature variations and various  handling methods.*

The heavy-duty HDRS3016-19 BulkTote® is ideal for metal stampings  and other heavy, dense components.  Designed to hold 500 lbs, these  containers are built for long-lasting durability in heavy-duty  applications.  When empty, the HDRS3016-19 BulkTote has the ability to  be manually handled without the need of a forklift.

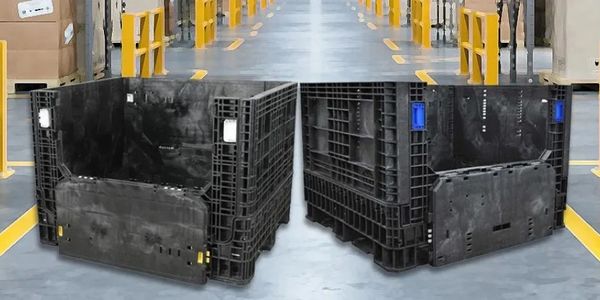

ORBIS offers its BulkPak® 3230 Series for the handling, storage  and distribution of high density, small to medium sized parts. These  containers, available in multiple heights, are based on the 32” x 30”  footprint and are offered in a variety of medium-duty and heavy-duty  styles to meet a wide variety of application needs.

With weight capacities from 1,500 to 2,000 pounds, ORBIS BulkPak®  4048 Series containers are ideal for all types of food, industrial or  beverage applications, as well as for international shipments. These  containers, available in multiple heights, are based on the 40” x 48”  footprint and are offered in a variety of medium-duty and heavy-duty  styles to meet a wide variety of application needs.

Based on the standard AIAG footprint,  ORBIS BulkPak® 4548 Series  containers are designed and constructed to efficiently move, store and  ship automotive, appliance and transportation equipment components. With  weight capacities from 1,500 to 2,000 pounds, they are ideal for all  types of product loads. These containers, available in multiple heights,  are based on the 45” x 48” footprint and are offered in a variety of  medium-duty and heavy-duty styles to meet a wide variety of application  needs.

Based on the standard AIAG footprint,  ORBIS BulkPak® 4548 Series  containers are designed and constructed to efficiently move, store and  ship automotive, appliance and transportation equipment components. With  weight capacities from 1,500 to 2,000 pounds, they are ideal for all  types of product loads. These containers, available in multiple heights,  are based on the 45” x 48” footprint and are offered in a variety of  medium-duty and heavy-duty styles to meet a wide variety of application  needs.

The BulkPak® 5648 Series accommodates long and hard-to-fit  component parts. These plastic reusable bulk containers features a  four-way fork entry and a variety of sidewall configurations, with up to  four hinged access doors available. Ideal for automotive, heavy-truck  and appliance applications.

Available only from ORBIS…the 62” x 48” bulk collapsible  container. The BulkPak® 6248 HD Series  bulk containers are ideal for  the storage and transport of long, heavy parts. The all-plastic picture  frame bottom reduces the risk of short-forking loads, while offering  full recyclability. With weight capacities up to 1,500 pounds, these  plastic reusable bulk containers are ideal for all types of automotive  and industrial applications.

The BulkPak® 6548 HDR collapsible containers are ideal for the  storage and transport of long, heavy parts. These extended-length bulk  bins were designed for lengthy, hard-to-fit parts common in the  automotive industry. With weight capacities up to 2,000 pounds, these  plastic reusable bulk containers are ideal for all types of automotive  and industrial applications.

ORBIS BulkPak® 7048 HDR Series containers can fit almost any part  or component and replaces other forms of transport packaging such as  metal racking that can rust. Additionally, all plastic reusable bulk  containers can be stacked, without racking, upright or collapsed. These  extended-length, collapsible containers are ideal for automotive  applications.

ORBIS BulkPak® 7848 Series containers were specifically designed  to handle extremely long and hard-to-fit parts. These collapsible  containers are ideal for use in automotive and appliance applications.  The extended-length, collapsible bulk bins offer smooth internal walls  for dunnage installation.

The 1000×800 MultiTank is an innovative 400 liter reusable alternative to drums and IBC tanks.  It stacks when full and nests when empty. Its lid features innovative sealing  technology. The unique conical design makes it nestable when empty,  increasing return truckload optimization. With a 6:1 nest ratio, users  can save up to 75% in storage space.

Designed in European dimensions and produced in Europe, the 1200mm  x 800mm GitterPak™ holds up to 900 kg and is a reliable substitute for  metal gitterboxes, metal tubs and wooden crates. As part of the ORBIS  line of FLCs, the GitterPak (Model HDB1208) offers logistics advantages,  warehouse cost-savings and an environmentally friendly alternative to  steel tubs, wood pallets and crates.

The HDB1210 GitterPak™ collapsible container system was engineered  for rugged, high weight applications as well as parts requiring  increased packaging protection. Comprised of tough, durable high-density  polyethylene, the HDB1210 series is designed to optimize your supply  chain while providing key features and benefits such as multiple  heights, access door and bottom configurations as well as enhanced  repairability features for easy, on-site repair.

Choose from a wide variety of covers for ORBIS bulk containers.  Designed for each different footprint, these covers protect parts from  dust and contamination during storage and transport.

The OpteBulk™ Systems comprise of a pallet, sleeve and top cap and  is an economical collapsible bulk containerfor lighter weight loads.  Select pallets feature a locking tab that secures the sleeve to the  pallet and top cap. Sleeves can be fabricated from paper or plastic  corrugated materials with custom features designed to meet a variety of  applications. Multiple custom sleeve heights and designs are available.  ORBIS offers custom printing and graphics available for easy  identification. OPTEBulk sleeves are available with drop panels,  split-sleeves and steel wire reinforced walls. The pallet/top cap design  allows for maximum cube utilization in trailers.
